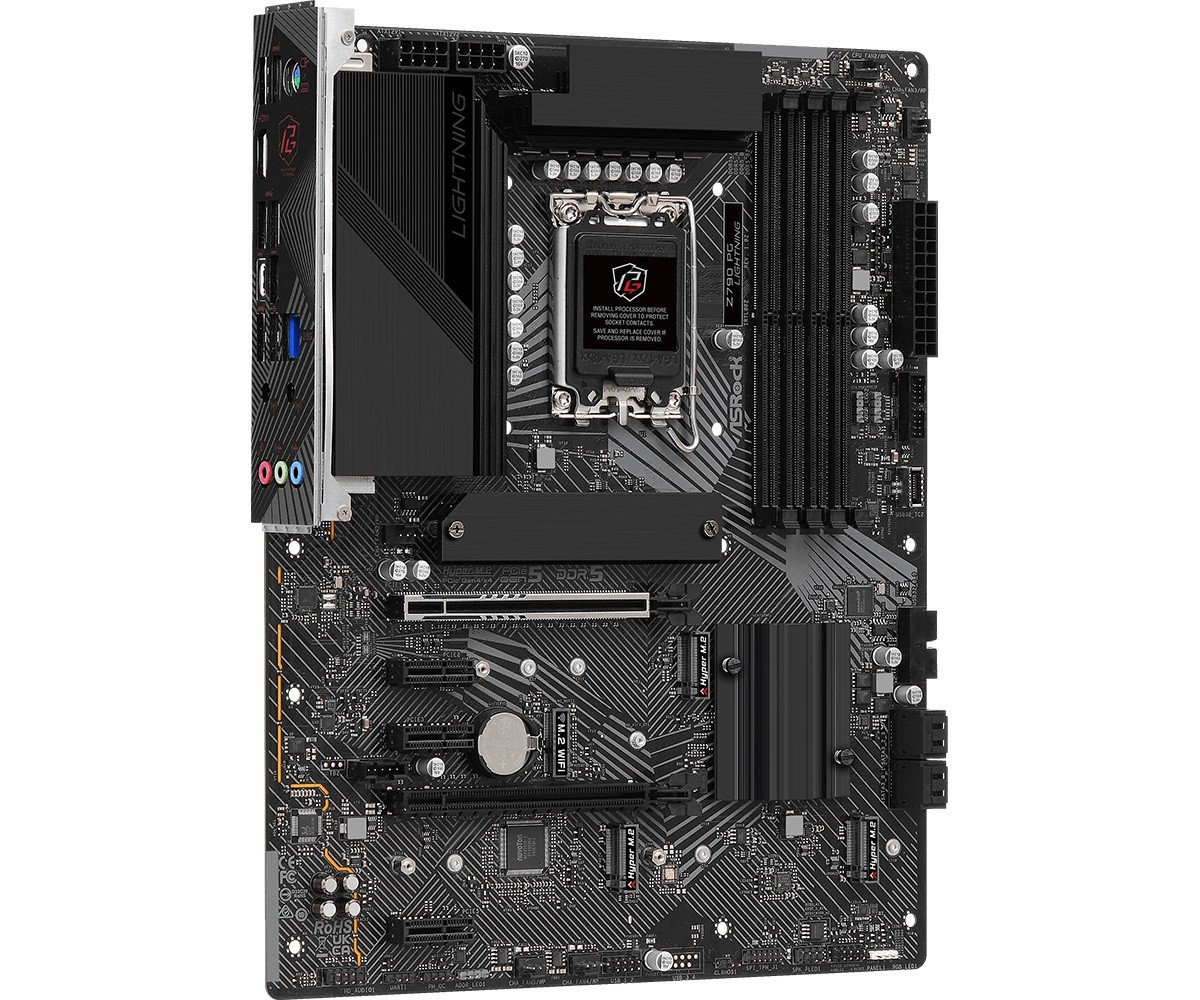

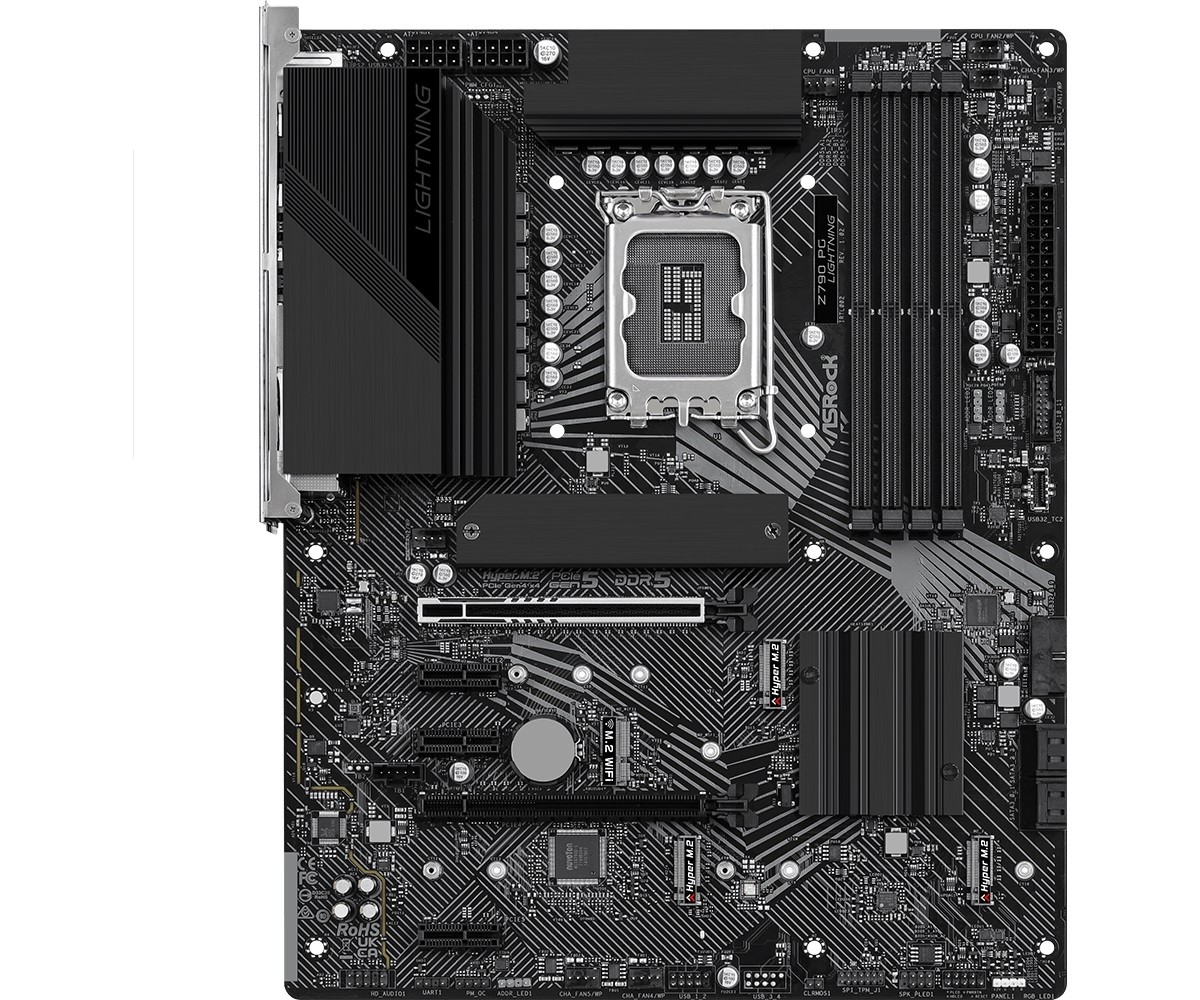

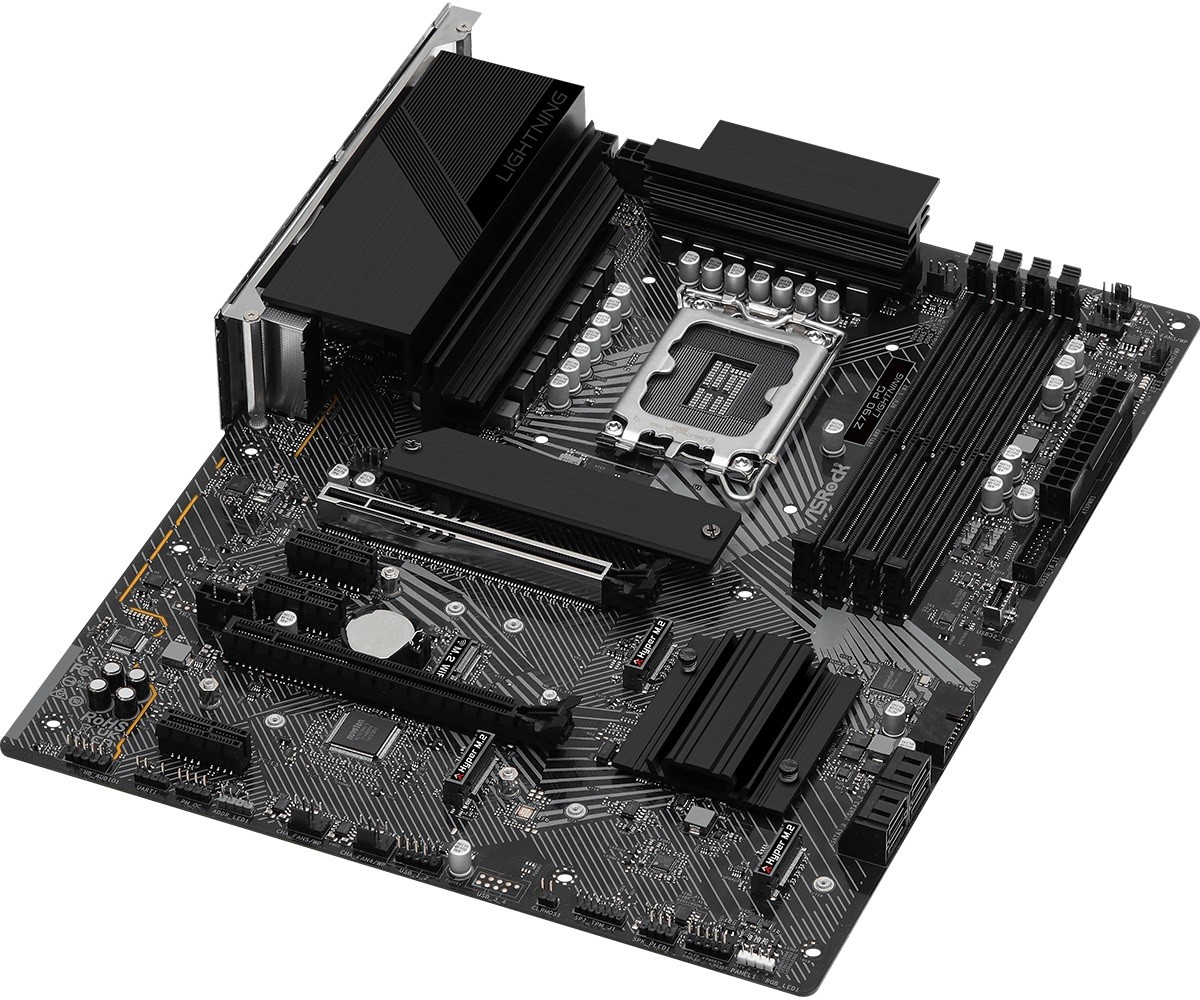

Z790 PG Lightning
Z790 PG LIGHTNING
Brak produktów w koszyku.
1 na stanie
998,00 zł
1 na stanie
Z790 PG LIGHTNING
standard płyty | ATX |
gniazdo procesora | LGA 1700 |
obsługiwane typy procesorów | Supports 12th Gen Intel Core Processors to 14th Gen Intel Core Processors |
chipset | Intel Z790 |
liczba obsługiwanych procesorów maks. | 1 |
typ obsługiwanej pamięci | Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* |
dwukanałowa obsługa pamięci | Tak |
ilość gniazd pamięci | 4, maks 256 GB |
ilość złączy PCI | 3 x PCI Express 3.0 x1 |
Złącze grafiki | 1 x PCI Express 5.0 x16 (x16), 1 x PCI Express 4.0 x4 |
kontroler | 4 x SATA 6 Gb/s, 4 x M.2 |
obsługa RAID | RAID 0, 1, 5, 10 |
zintegrowana karta sieciowa | 10/100/1000/2500 Mb/s Realtek RTL8125BG |
zintegrowana karta dźwiękowa | 8- kanałowa karta dźwiękowa High Definition Audio Realtek ALC897 |
zintegrowana karta graficzna | Intel HD Graphics (wsparcie dla procesorów ze zintegrowanym układem graficznym) |
porty zewnętrzne | 1 x USB3.2 gen2x2 Type-C, 5 x USB3.2 Gen2, 2 x USB2.0, HDMI, DP, RJ-45, Audio, Wi-Fi |
dołączone oprogramowanie | Sterowniki i narzędzia ASRock |
Key Feature
AMD Socket AM5:Supports AMD Ryzen 7000 Series / Ryzen 8000 Series Processors
Unparalleled Performance:Twin 16*+2+2 Phases Digital VRM Solution
Dual Channel DDR5:4*SMD DIMMs with AMD EXPO & IntelŽ XMP Memory Module Support
Next Generation Storage:1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
Mega-Heatpipe & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity:HDMI, Dual USB-CŽ 20Gbps and Upcoming GIGABYTE USB4 AIC Support
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Z790M PG Lightning/D4
Supports 13th Gen & 12th Gen Intel Core Processors
10+1+1 Phase Power Design, Dr.MOS for VCore+GT
4 x DDR4 DIMMs, supports up to 5333+(OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3
1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
Intel 1G LAN

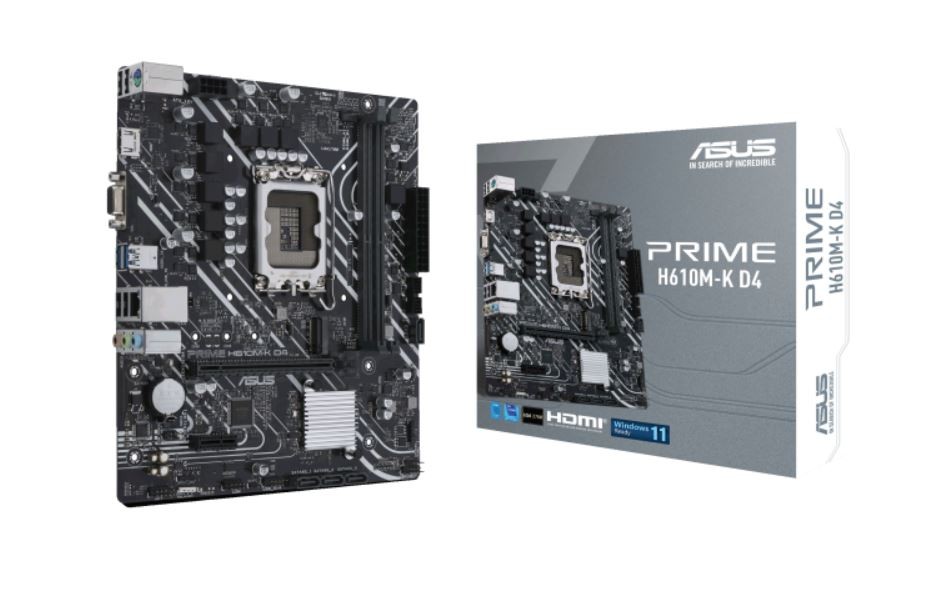

IntelŽ H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMIŽ, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header
IntelŽ LGA 1700 socket: Ready for 14th, 13th & 12th Gen IntelŽ processors
Comprehensive cooling: PCH heatsink and Fan Xpert
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
5X Protection III: Multiple hardware safeguards for all-round protection

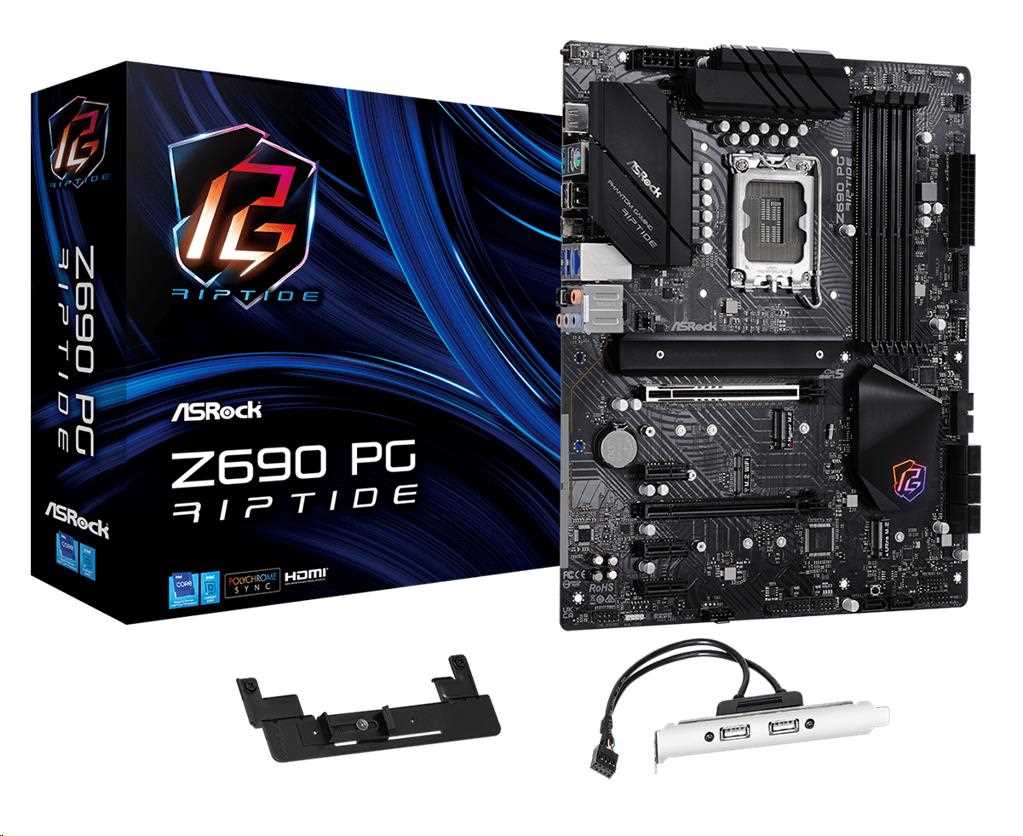

Z690
PG Riptide
PRODUCT BRIEF:
Supports 14th, 13th & 12th Gen IntelŽ Core Processors (LGA1700)
13 Phase Dr.MOS Power Design
4 x DDR4 DIMMs
Supports Dual Channel, up to 5333+ (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1
1 M.2 Key-E for WiFi
Graphics Output Options: HDMI
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
8 SATA3
2 Hyper M.2 (PCIe Gen4 x4)
1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
1 USB 3.2 Gen2x2 Rear Type-C
2 USB 3.2 Gen2 (Rear)
1 USB 3.2 Gen1 Front Type-C
6 USB 3.2 Gen1 (2 Rear, 4 Front)
Killer E3100 2.5G LAN
Piorunujący Gaming Ports
ASRock Graphics Card Holder
