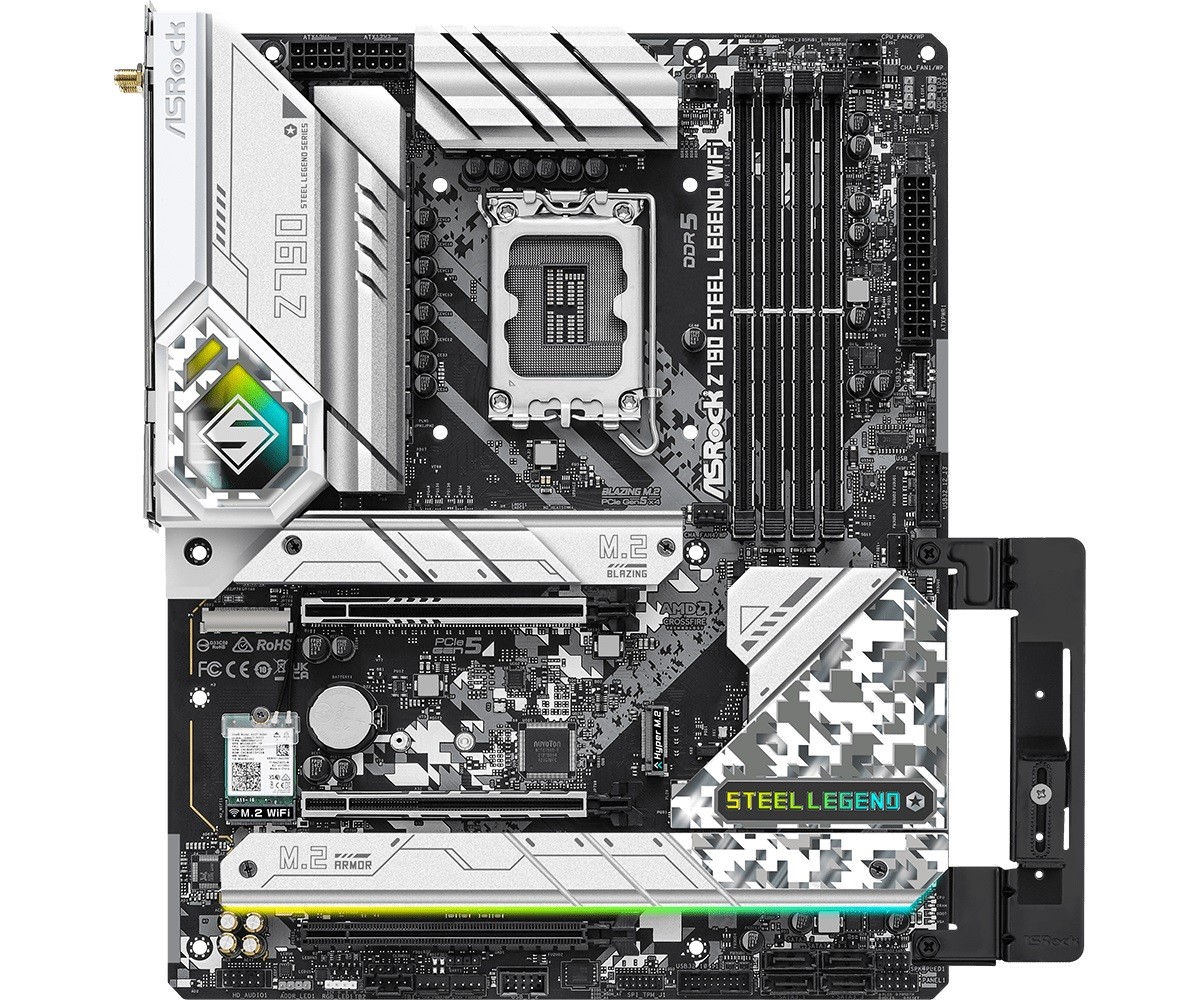

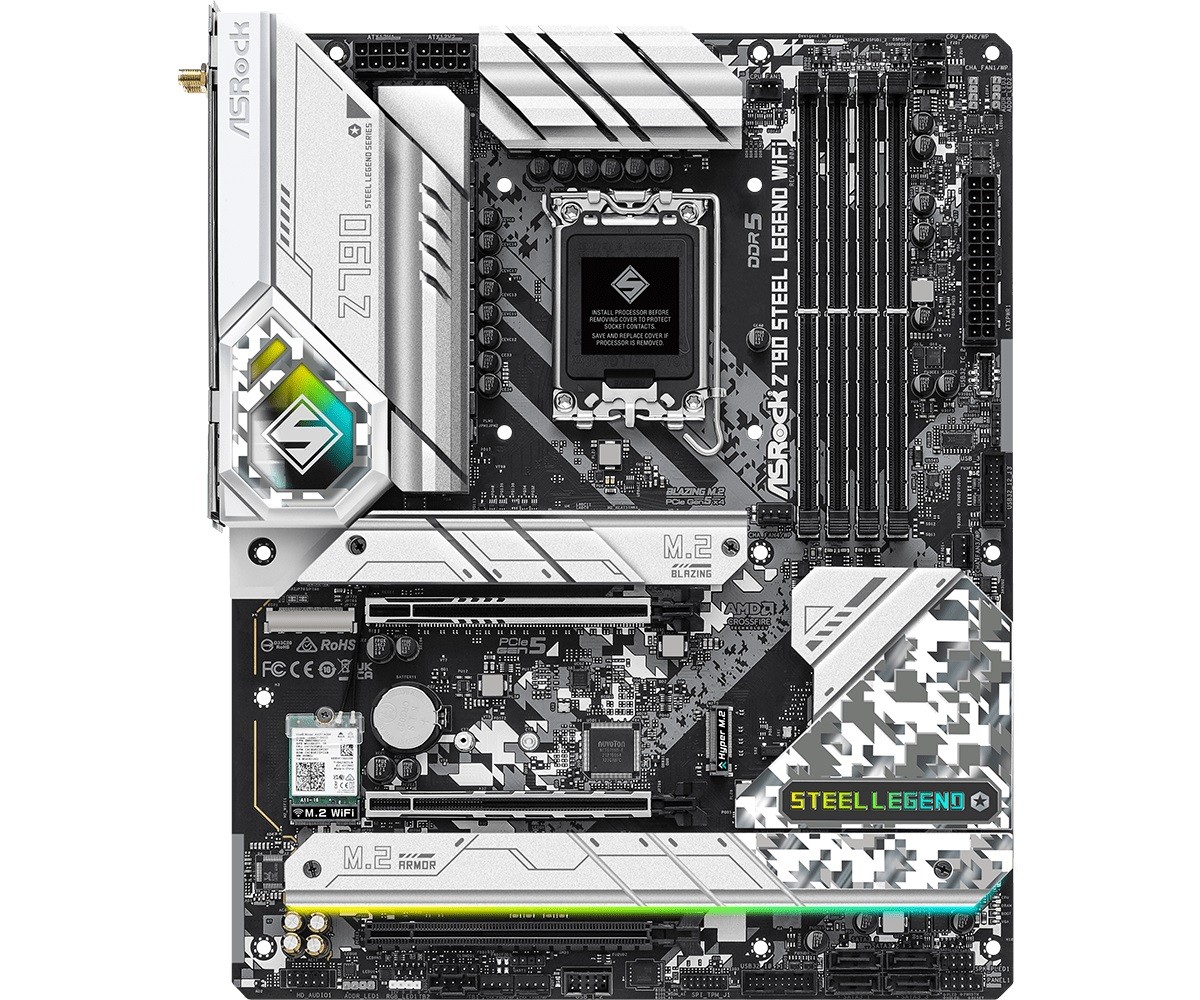

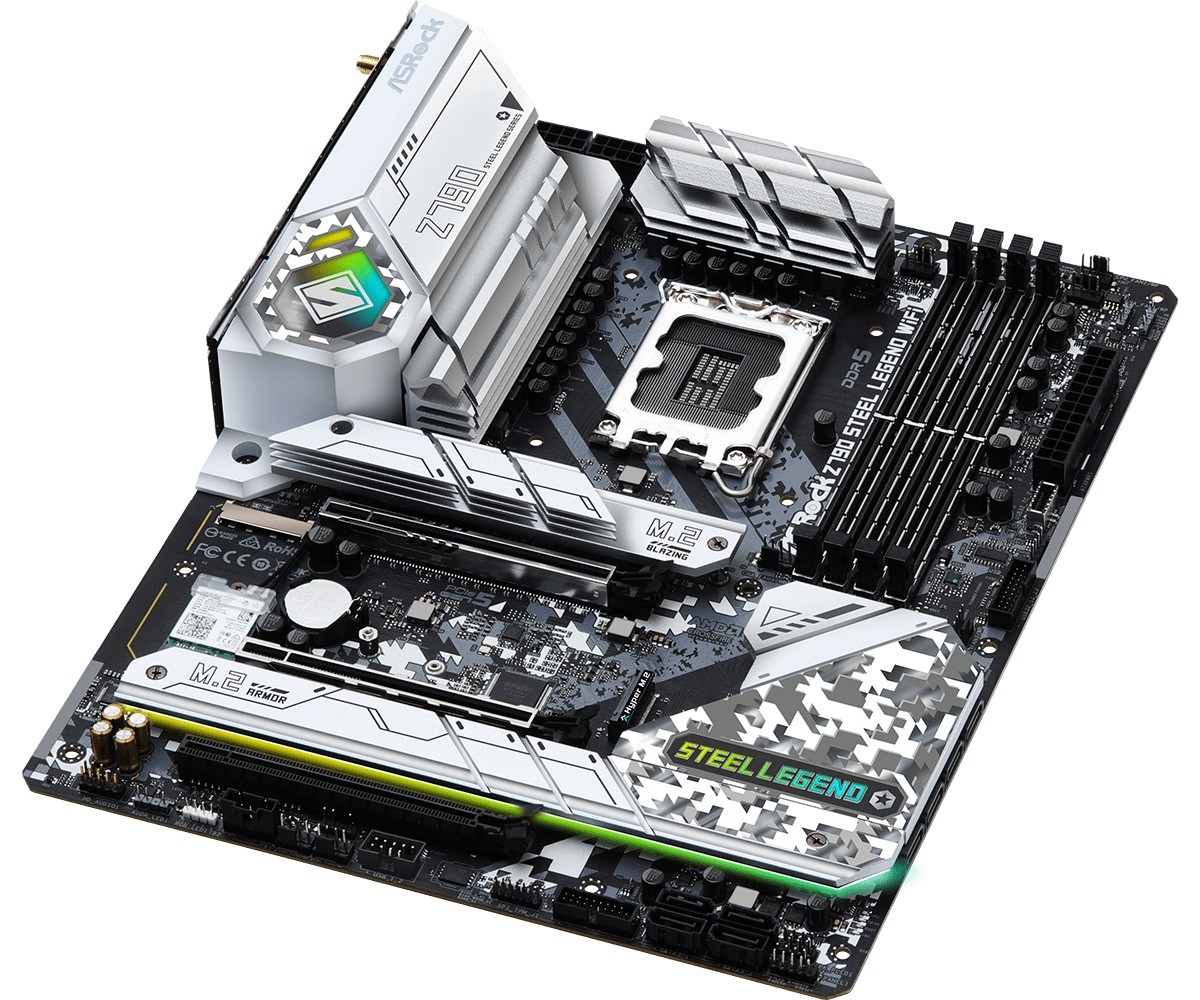

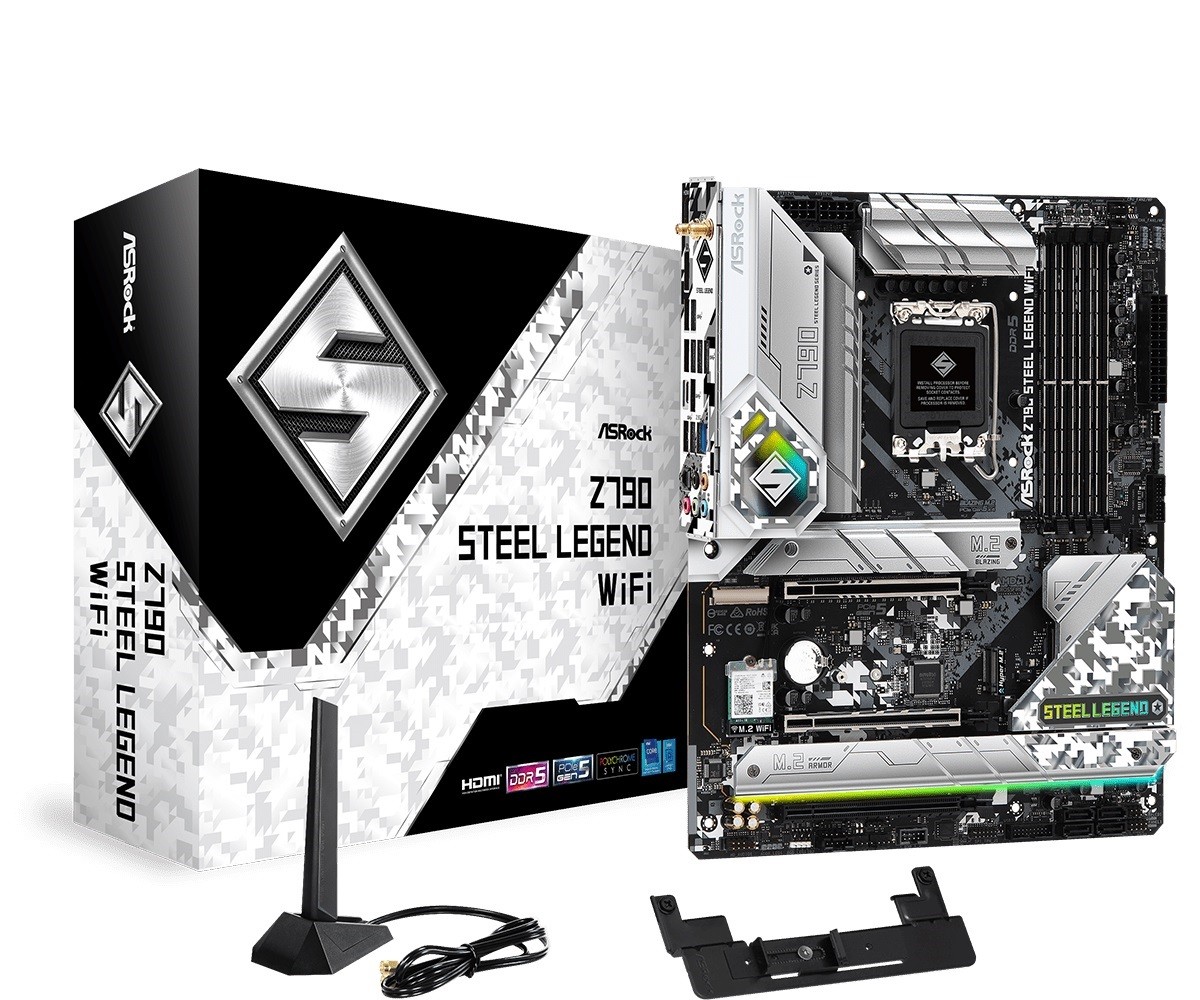

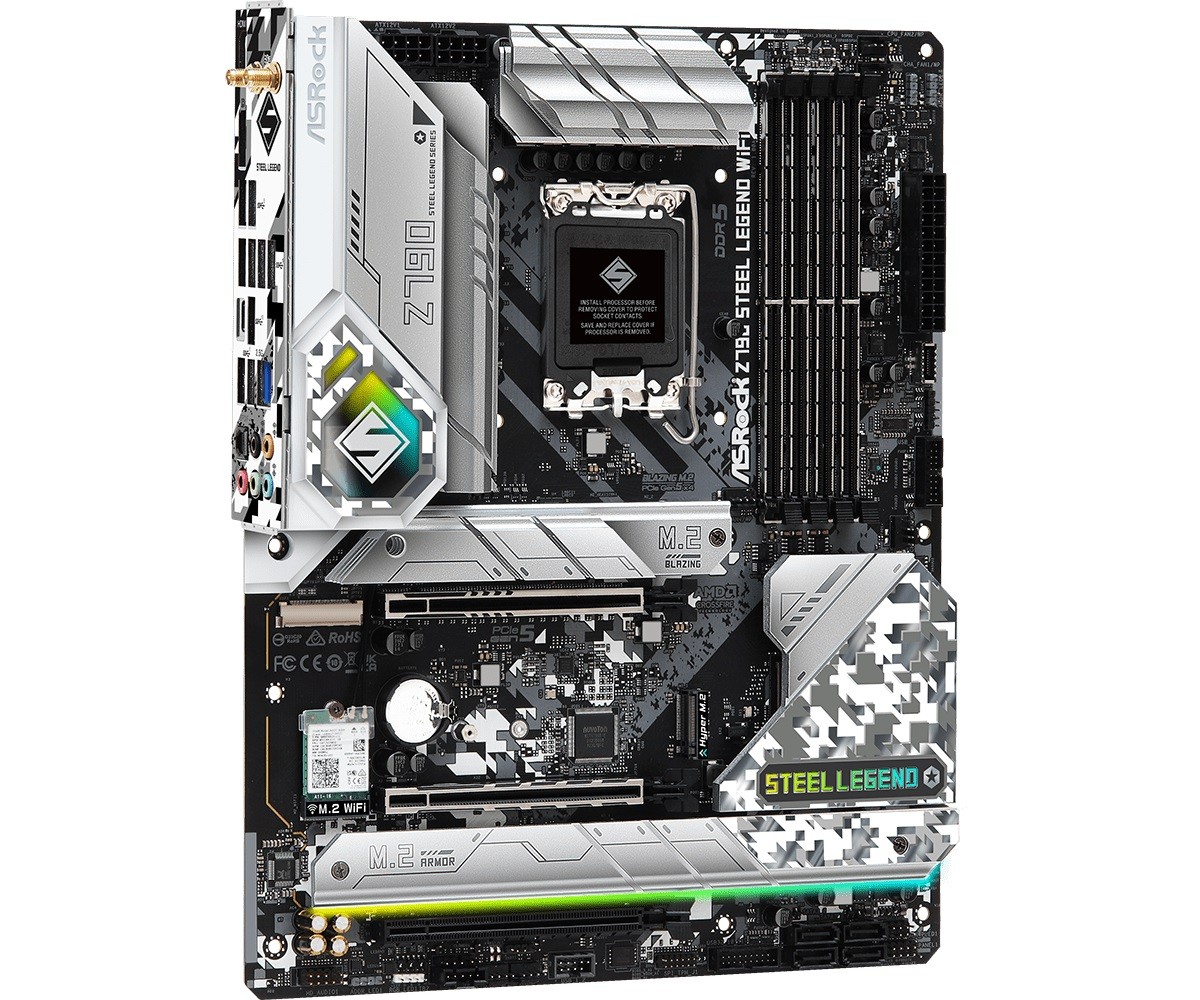

Płyta główna Z790 Steel Legend WiFi
16+1+1-fazowy projekt zasilania, SPS dla VCore+GT
Z790 STEEL LEGEND WIFI
Brak produktów w koszyku.
Brak w magazynie
1 253,00 zł
Brak w magazynie
Z790 STEEL LEGEND WIFI
| standard płyty | ATX |
| gniazdo procesora | LGA 1700 |
| obsługiwane typy procesorów | Supports 12th Gen Intel Core Processors to 14th Gen Intel Core Processors |
| chipset | Intel Z790 |
| liczba obsługiwanych procesorów maks. | 1 |
| typ obsługiwanej pamięci | Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* |
| dwukanałowa obsługa pamięci | Tak |
| ilość gniazd pamięci | 4, maks 192 GB |
| ilość złączy PCI | 2 x PCI Express 3.0 x1 |
| Złącze grafiki | 1 x PCI Express 5.0 x16 (x16), 1 x PCI Express 4.0 x4 |
| kontroler | 8 x SATA 6 Gb/s, 5 x M.2 |
| obsługa RAID | RAID 0, 1, 5, 10 |
| zintegrowana karta sieciowa | Killer E3100G 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, 802.11ax Wi-Fi 6E Module |
| zintegrowana karta dźwiękowa | 8- kanałowa karta dźwiękowa High Definition Audio Realtek ALC897 |
| zintegrowana karta graficzna | Intel HD Graphics (wsparcie dla procesorów ze zintegrowanym układem graficznym) |
| porty zewnętrzne | 1 x USB3.2 gen2 Type-C, 1 x USB3.2 Gen2, 8 x USB3.2 Gen1, HDMI, DP, RJ-45, Audio, Wi-Fi |
| dołączone oprogramowanie | Sterowniki i narzędzia ASRock |
TUF GAMING
B650-PLUS WIFI
ASUS TUF GAMING B650-PLUS WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
ASUS Prime B760M-K D4, an Intel B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMIŽ, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync
Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen IntelŽ processors
Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
8 Power Phase Design, Digi Power
Supports DDR4 4733+ (OC)
2 x PCIe 3.0 x16, 1 x M.2 Key E for WiFi
Graphics Output Options: HDMI, DisplayPort, D-Sub
7.1 CH HD Audio (Realtek ALC1220/ALC1200 Audio Codec), Nahimic Audio
4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3)
10 x USB 3.2 Gen1(5 x Rear, 1 x Rear Type-C, 4 x Front)
Realtek Gigabit LAN
B650 GAMING X AX V2
Gniazdo AMD AM5: obsługuje procesory AMD Ryzen 7000/Ryzen 8000 Series
Niezrównana wydajność: bezpośrednie cyfrowe rozwiązanie VRM 8+2+2 faz
Dwukanałowa pamięć DDR5: 4*SMD DIMM z obsługą modułów pamięci AMD EXPO i Intel XMP
Pamięć masowa SuperSpeed: 1 * złącza PCIe 5.0 x4 + 2 * PCIe 4.0 x4 M.2
Zaawansowana konstrukcja termiczna i osłona termiczna M.2: aby zapewnić stabilność zasilania VRM i wydajność dysku SSD 25110 M.2
Zatrzask EZ: gniazdo PCIe x16 z konstrukcją szybkiego zwalniania
Szybkie sieci: 2,5 GbE LAN i Wi-Fi 6E 802.11ax
Rozszerzona łączność: DP, HDMI, USB-C 10 Gb/s z tyłu, USB-C 20 Gb/s z przodu
Smart Fan 6: Zawiera wiele czujników temperatury, hybrydowe złącza wentylatorów z funkcją FAN STOP
Q-Flash Plus: Zaktualizuj BIOS bez instalowania procesora, pamięci i karty graficznej
